3D Tour Shooting Instructions

Urbanimmersive's Required Shooting Instructions for 3D Tours

Urbanimmersive / Tourbuzz 3D Tours are immersive virtual tours emulating 3D environments using spherical images. The 3D tours are created directly using the Tourbuzz single property website platform, and images are produced with Ricoh Theta V, SC2 or Z1 cameras.

Our automated post-production algorithm utilizes visual content recognition and machine learning image classification technologies to recreate the camera path used by the photographer during the photo shoot.

Therefore, shooting instructions are required to ensure that the visual content automated post-production processes work seamlessly.

Failing to follow shooting instructions will result with 3D tour being rejected or would prevent the 3D tour from being scaled-to-life for precise floor plan creation.

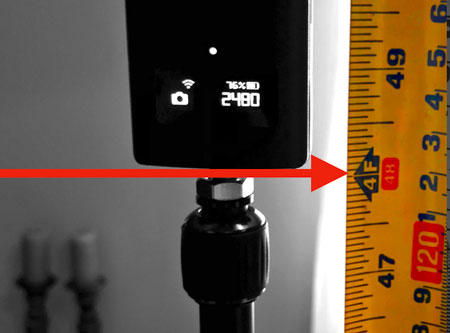

Camera Height

The recommended height of the camera is 4 ft. If you would like to use a different camera height, ask our support team to show you how you can calibrate the measurement tool.

NEVER change camera height during the same shoot. It will greatly impact the scaled-to-life floor plans and feel of the tour. If you work in teams during a shoot, make sure both photographers have the exact same camera height.

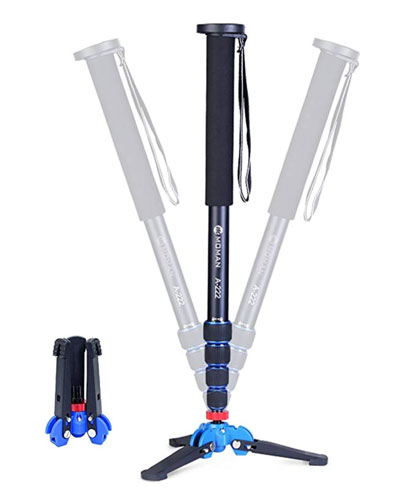

Make sure your Camera is Level

Use a monopod that you can adjust the level. Make sure the camera is always levelled.

Unlevelled 360 images can’t be used as precision anchors by our post-production processes. This will greatly impact floor plan precision and user experience.

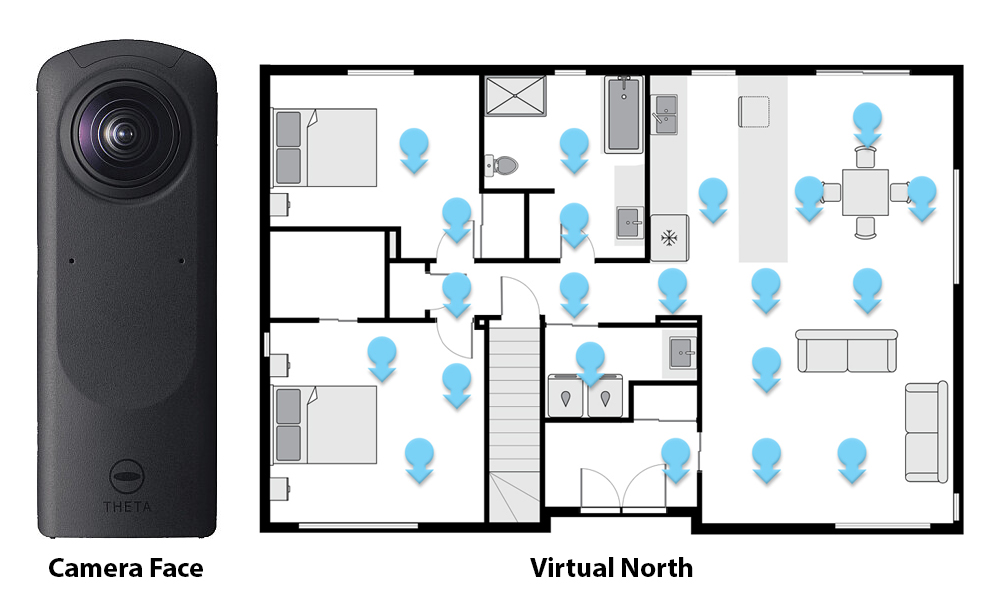

Virtual North (THE MOST IMPORTANT RULES)

The camera must always start facing the same direction for each 360 image. We call this our Virtual North. The virtual north can be the front, the back, the left or right wall of the house, but must stay the same throughout the entire project.

If your camera is not always facing a virtual north, the way the 360 camera measures and gets the light that comes in the lenses will never be measured the same way. This will lead to inconsistent final images white balance and light intensity.

Furthermore, the stitching needed to feed the (in the middle of the 2 lens) gap is creating distortions when creating floor plan walls. Not shooting always in the same direction will GREATLY impact floor plan precision.

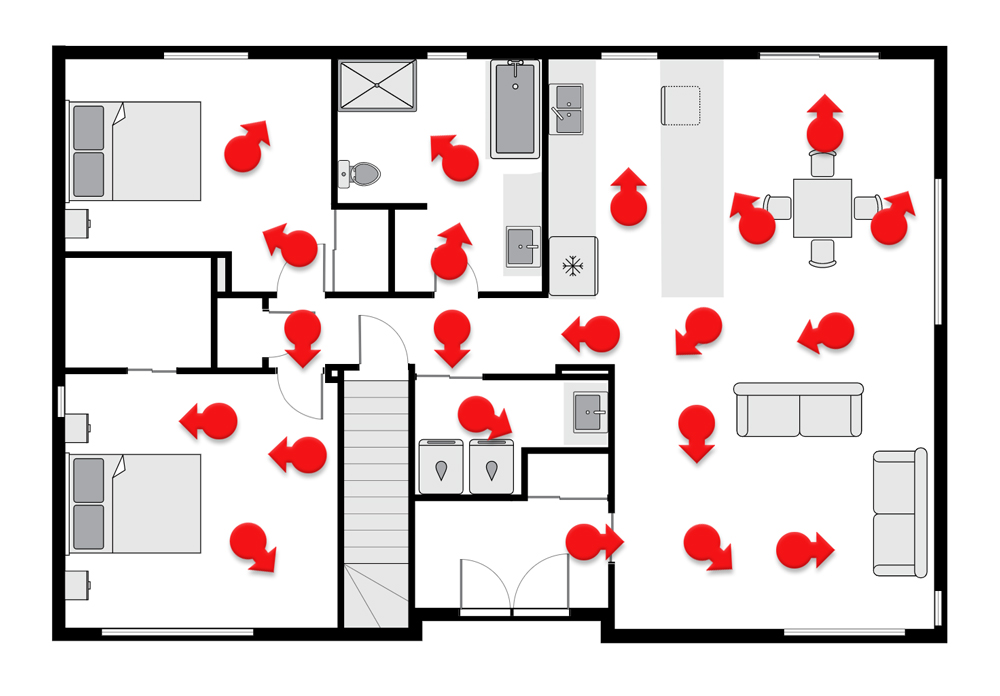

Your 3D tour could be rejected if...

If all your 360 images are pointing in different directions.

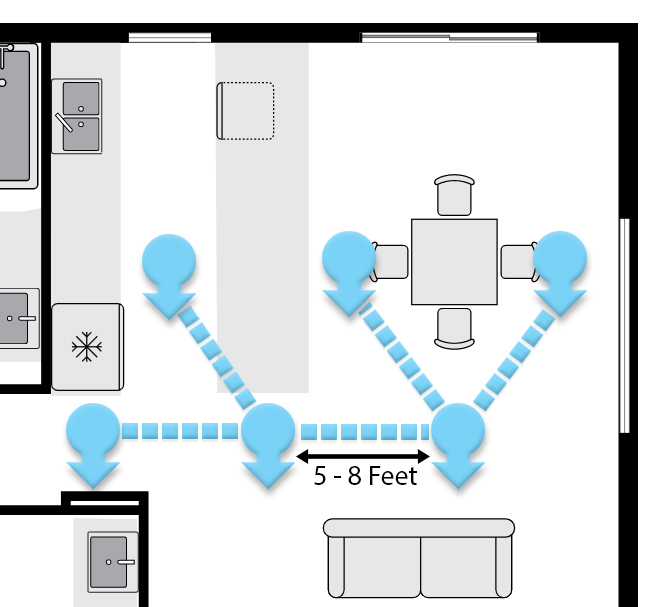

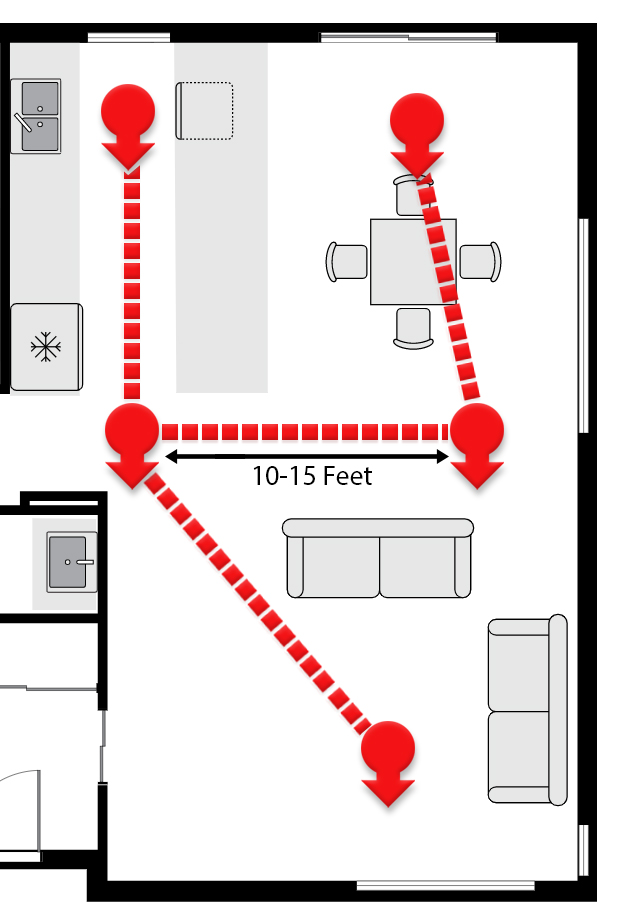

Distance between 360 images

The distance between each 360 images should not be greater than 8 feet. Too much distance between 360 images will greatly decrease the floor plan precision and user experience.

Your 3D tour could be rejected if...

If the distance between 360 images is too great.

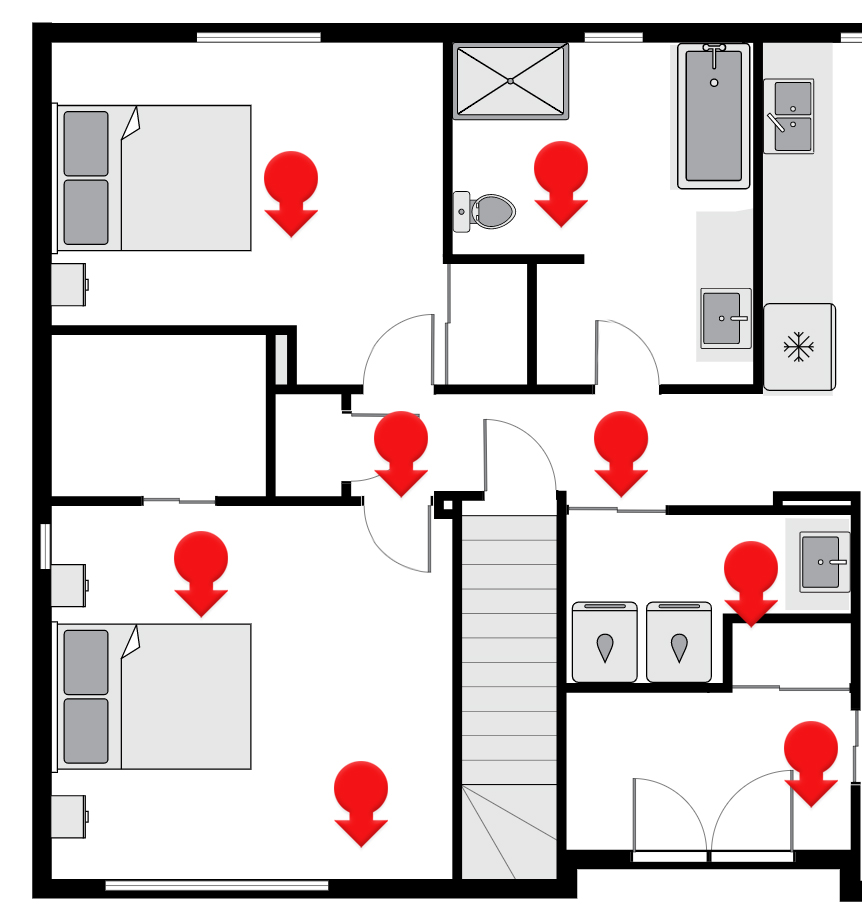

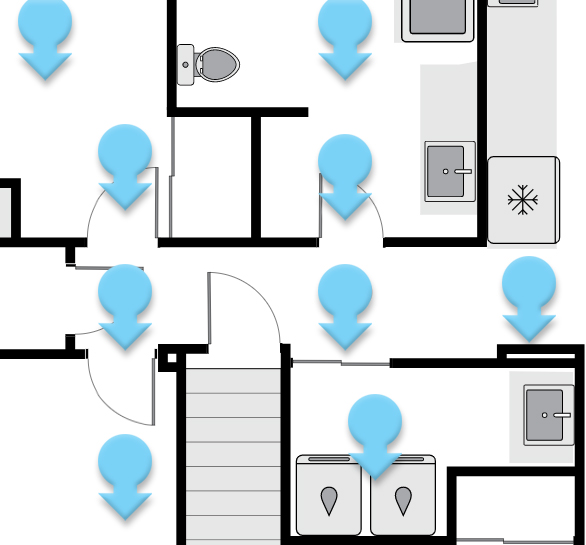

Doors And Open Access

Each doorway will require a pair of 360 images. One before entering the room and another once inside. Make sure each 360 image has a line of sight to the paired image.

Your 3D tour could be rejected if...

If you aren’t shooting pairs of panos for doors and/or If walls hide the line of sight between 360 images.

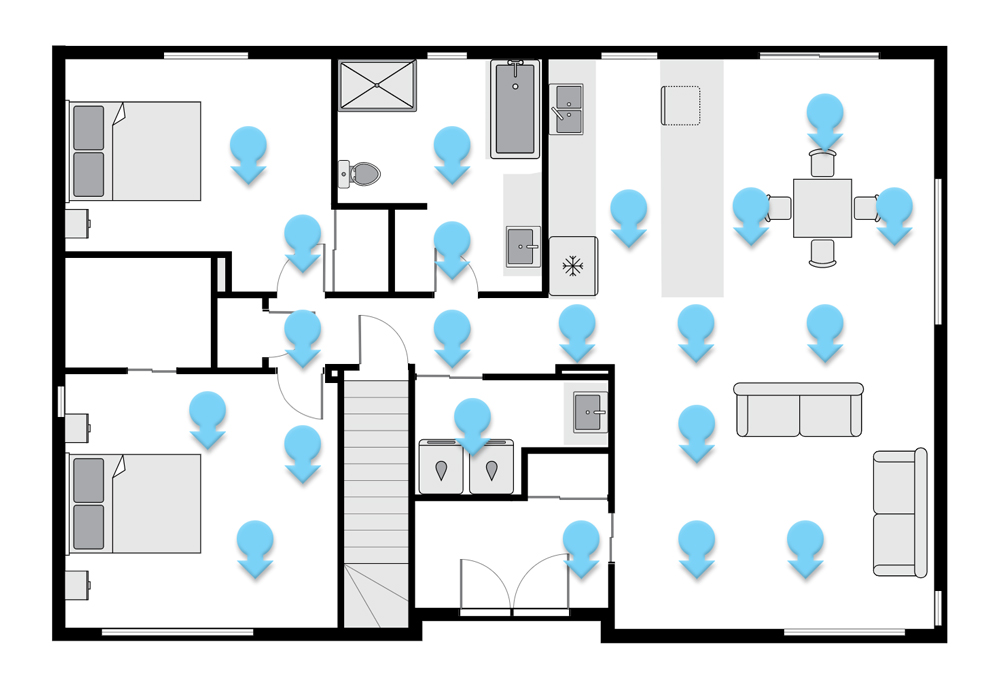

Camera Path

Create a camera path that enables viewing all rooms. A minimum of one image per room is required to create the floor plan but might be not enough to provide a good user experience.

Too many 360 images is not always better. It will take extra time on site without really adding extra value to the 3D tour. Create a camera path that showcases the best possible pathway through the house.

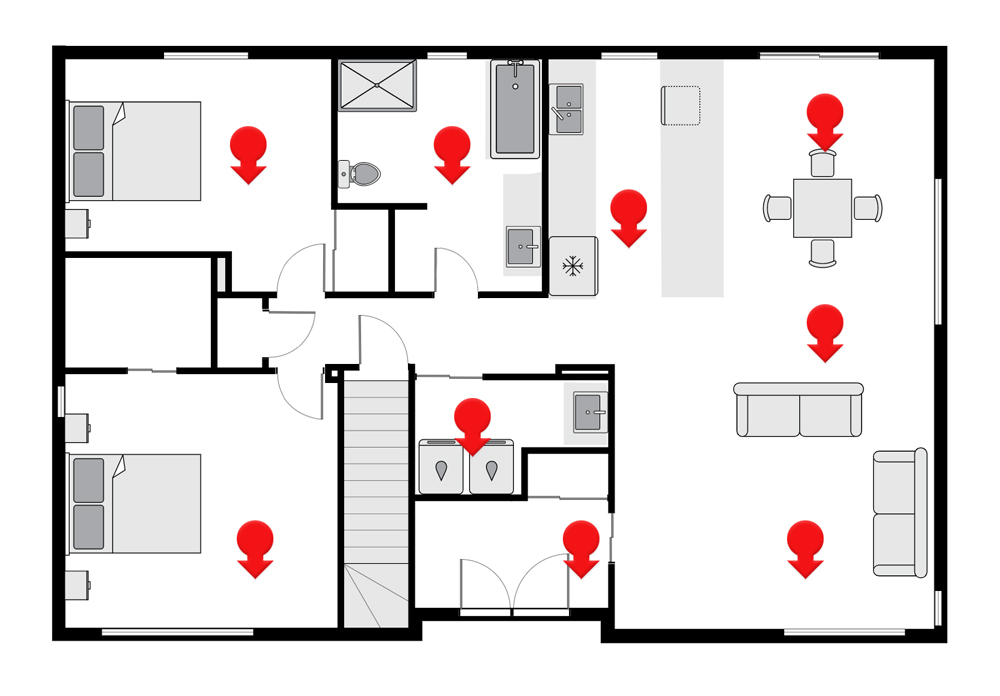

Your 3D tour could be rejected if...

If don't have a camera path or connections between panos. Separately shooting rooms will not work with our 3D tours.

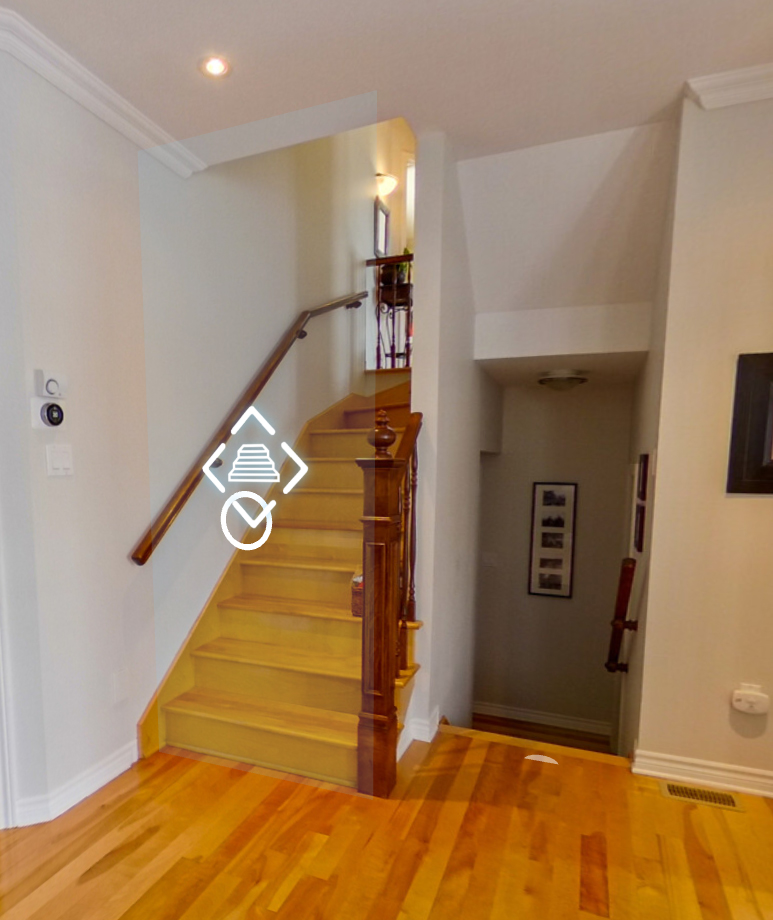

Stair Gateways

There is no need to take 360 images on the stairs. Just do a 360 image in front of every stairway. Our post-production team will create gateways on the stairs allowing the user to jump from one level to the other with a single click.
